Payment integration

The AiFi Generic Payment Bridge connects external payment providers to the AiFi autonomous store ecosystem. This API supports pre-authorizations, captures, and refunds. It ensures that the transaction lifecycle stays unified across the shopper's journey.

Prerequisites

Before you start the integration, ensure that you meet the following requirements:

• AiFi account: You have an active AiFi retailer account with administrative access.
• HTTPS endpoints: Your payment system exposes HTTPS endpoints accessible from the public internet to receive push notifications and capture requests.
• Authentication credentials: You have the necessary API keys and provider secrets from your AiFi Account Manager.
• Webhooks configuration: You are familiar with the AiFi Webhooks system. While this guide covers payment-specific notifications, manage general webhooks in the Settings menu.

info

For details on configuring listeners, see the Webhooks documentation. For details on authentication for the GPB API, see the Authentication documentation.

Shopper journey: Card-based flow

You must understand the physical flow of the shopper to implement the API correctly:

1. The shopper taps or inserts a card at the store entrance (via the AiFi terminal).
2. AiFi requests a pre-authorization from your payment API.
3. The shopper enters the store and selects items.
4. The shopper exits the store.
5. AiFi requests a capture or one-time payment for the final amount.
6. AiFi triggers a refund if necessary (for example, for returns or pricing errors).
7. The shopper receives a digital receipt from the WebReceipt Portal.

Developer integration flow

Follow these steps to register your provider and manage store entry.

Step 1: Register payment provider

Register your system with the Payments API. This allows AiFi to identify where to send payment operations.

PUT/api/v1/payment/auto-discovery

Request

{
  "name": "My Payment provider",
  "url": "https://provider.example.com/api/v1/",
  "authType": "Bearer",
  "authCredential": "provider-secret",
  "options": {
    "skipPreAuth": false
  }
}

Response

{
  "created": true,
  "existing": false,
  "providerName": "SHIFT4"
}

Step 2: Get payment terminals

Retrieve a list of payment terminals associated with your provider to verify connectivity.

GET/api/v1/upstream/payment-terminalsRetrieve terminals

Parameters: paymentProviderName={name}&enabled=true&offset=0&count=10

Response

{
  "data": [
    {
      "name": "terminal1",
      "description": "backup terminal",
      "id": "int-id",
      "externalId": "EXT-007",
      "address": "192.168.0.1",
      "paymentProviderId": 1,
      "enabled": true,
      "storeId": 101,
      "storeExternalId": "STR-EXT",
      "checkInDeviceId": 1,
      "registrationMode": "internal",
      "skipCardTokenization": true,
      "activateOnCall": true,
      "metadata": { "key": "value" },
      "createdAt": "2025-01-01T00:00:00Z",
      "updatedAt": "2025-01-01T00:00:00Z"
    }
  ],
  "pagination": {
    "previous": { "offset": 0, "count": 10 },
    "next": { "offset": 10, "count": 10 }
  }
}

Response data model

Field	Type	Description
name	String	The internal name of the terminal.
externalId	String	The ID used by the external system.
address	String	IP address of the terminal.
storeId	Integer	The internal ID of the store.
registrationMode	String	The mode of registration (e.g., internal).

Step 3: Enter the store

Call this endpoint after a valid card read. This action completes the following tasks:

• Creates the customer profile (if necessary).
• Saves payment information.
• Binds the pre-authorization.
• Creates a session.
• Starts registration.

Caution: Ensure the card.token and preAuth.id are valid before you call this endpoint to prevent entry errors.

POST/api/v1/upstream/check-in

Request

{
  "terminalExternalId": "ext-123",
  "paymentProviderName": "NEW PROVIDER",
  "card": {
    "token": "card-token",
    "brand": "Visa",
    "type": "credit",
    "last4Digits": "2137",
    "bin": "457173",
    "expiryDate": "02/28",
    "extraData": "{\"firstName\":\"JOHN\",\"lastName\":\"DOE\"}"
  },
  "preAuth": {
    "id": "pre-auth-id",
    "amount": { "amount": 3000, "currency": "USD" },
    "emvData": "9F240512345678908A023030"
  }
}

Provider endpoints (callbacks)

AiFi sends requests to your system to process payments, update orders, or send notifications.

Pre-auth capture

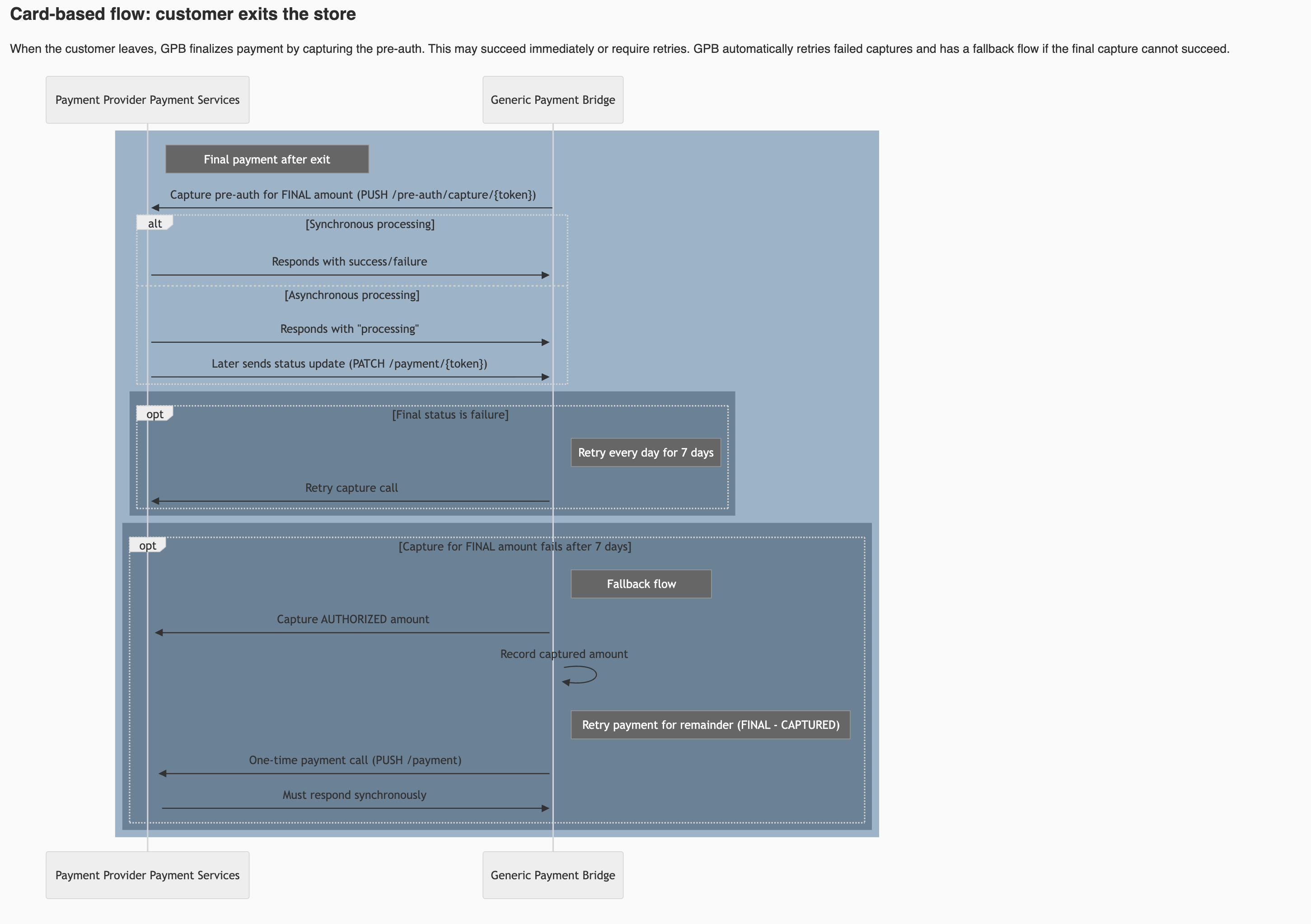

AiFi requests this operation to capture the pre-authorization. This occurs when the shopper exits or when the final basket total is available. This is the primary PUSH call that follows the "check-in" action.

POST/pre-auth/capture/{preAuthId}

Request

{
  "orderId": "ORD-12345",
  "amountMinor": 4575,
  "currency": "USD",
  "products": [
    {
      "id": "1",
      "name": "Sandwich",
      "price": "4.00",
      "quantity": 1,
      "totalPrice": "4.60",
      "taxCode": "FOOD"
    }
  ]
}

Response (success)

{
  "status": "succeeded",
  "providerPaymentToken": "{preAuthId}",
  "amount": 15
}

Response (failure)

{
  "status": "failure",
  "providerPaymentToken": "{preAuthId}",
  "amount": 15
}

Response (processing/async)

{
  "status": "processing",
  "providerPaymentToken": "{preAuthId}",
  "amount": 15
}

Error

{
  "message": "Error message",
  "statusCode": 403
}

Refunds

AiFi uses this endpoint only if your system supports refunds initiated from AiFi. This supports partial or full amounts.

POST/payment/refund/:paymentId

Request

{
  "paymentId": "pay_123",
  "amountMinor": 1500,
  "currency": "USD",
  "reason": "Product returned",
  "idempotencyKey": "fef4a72a-80e4-4c1c-91f8-8b2a6a55c991"
}

Response

{
  "providerPaymentToken": {paymentId},
  "amount": 15,
}

Update order text

You call this upstream endpoint to update extra text on the shopper's receipt. This is useful for payment references, tips, or loyalty messages.

PATCH/api/v1/upstream/order/{orderId}

Request

{
  "extraText": "Paid with X Payment Provider — thank you for shopping!"
}

Update order status

Use this endpoint to update the status of an order when working with the asynchronous payment flow. It allows you to transition an order from processing to either paid or unpaid once the final payment result is known.

PATCH/api/v1/upstream/order/{orderId}

Request

{
  "status": "paid|unpaid"
}

Notification events

AiFi sends event notifications to your registered endpoint when specific configuration changes occur.

The primary event type for payment providers is terminal.updated. For a complete list of supported webhook types and configuration instructions, refer to the Webhooks documentation.

POST/notifications

Request

{
  "type": "terminal.updated",
  "id": "evt_01J0X",
  "data": {
    "externalId": "AIFI-TERMINAL-007",
    "enabled": true,
    "storeId": "store_123",
    "checkInDeviceId": "entrance_east"
  }
}
